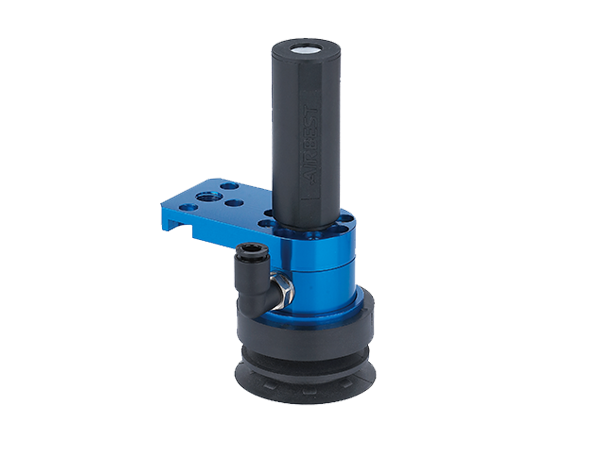

Features
◇ Simple structure, integrated with vacuum pump, easy to maintain
◇ Large vacuum flow, mainly used in handling objects like perforated plate, food, irregular parts, etc.
| How to order | |||||
| SLB 50 N - M10 T - F1 ① ② ③ ④ ⑤ ⑥ | |||||
| ① Series | ② Dimension | ③ Material of suction cup | ④ Specification of vacuum pump | ⑤ Exhaust direction | ⑥ Mounting (Flange) |
| SLB | 30 - φ30mm 50 - φ50mm | N -NBR WS -White silicone E -EPDM | M10- Airway Ф10mm vertical exhaust M20- Airway Ф20mm vertical exhaust M30- Airway Ф30mm vertical exhaust P7 - Airway Ф6.5mm vertical exhaust M7 - Airway Ф7mm vertical exhaust | S -Vertical exhaust (With silencer) T -Vertical exhaust (With pagoda fitting) | F1 - 55×6mm F3 - 63×11mm F4 - 95×11mm F6 - 110×13mm F7 - 75×45mm |
| Selection | |||||||||
| Series | Diameter of suction cup | Specification of vacuum pump | Exhaust direction | Mounting | |||||
| T | S | F1 | F3 | F4 | F6 | F7 | |||
| SLB | 30 | M7/M10 | ● | - | ● | ● | - | - | - |
| - | ● | ● | ● | - | - | - | |||
| 50 | M10 | ● | - | ● | ● | - | - | - | |
| - | ● | - | ● | - | - | - | |||
| M20 | ● | ● | - | - | ● | - | - | ||
| M30 | ● | ● | - | - | - | ● | - | ||
| P7 | - | ● | - | - | - | ● | - | ||
| P15 | - | ● | - | - | - | - | ● | ||
◇ Note: "●"- standard, in stock. "—"- unavailable.
| Technical parameters | ||||||||||
| Model | Working temperature (°C) | Operating pressure range (bar) | Air supply pressure (bar) | Max. vacuum flow (NL/min) | Max. air consumption (NL/min) | Max. vacuum level (-kPa) | ||||
| SLB30-M7 | 0-60(Non-freezing) | 1-7 | 5 | 320 | 70 | 8 | ||||
| SLB30/50-M10 | 540 | 165 | 13 | |||||||
| SLB50-M20 | 1,720 | 245 | 5 | |||||||
| SLB50-M30 | 2,320 | 375 | 4 | |||||||
| SLB50-P7 | 280 | 340 | 70 | |||||||
| SLB50-P15 | 1,650 | 660 | 30 | |||||||

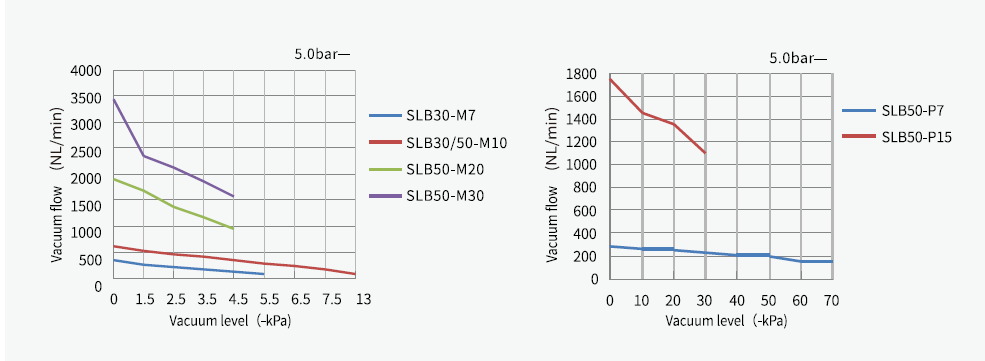

| Vacuum flow (NL/min) at different vacuum levels (-kPa) | ||||||||||||
| Model | Air supply pressure (bar) | Air consumption (NL/min) | 0 | 1.5 | 2.5 | 3.5 | 4.5 | 5.5 | 6.5 | 7.5 | 13 | Max. vacuum level (-kPa) |
| SLB30-M7 | 5 | 70 | 320 | 270 | 220 | 180 | 130 | 90 | - | - | - | 8 |
| SLB30/50-M10 | 5 | 165 | 540 | 520 | 460 | 410 | 340 | 290 | 240 | 160 | 90 | 13 |
| SLB50-M20 | 5 | 245 | 1,720 | 1,680 | 1,380 | 1,180 | 950 | - | - | - | - | 5 |
| SLB50-M30 | 375 | 2,320 | 2,120 | 1,870 | 1,580 | - | - | - | - | - | 4 | |
| Vacuum flow (NL/min) to reach different vacuum levels (-kPa) | |||||||||||
| Model | Air supply pressure (bar) | Air consumption (NL/min) | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | Max. vacuum level (-kPa) |
| SLB50-P7 | 5 | 340 | 280 | 260 | 250 | 230 | 210 | 200 | 150 | 140 | 70 |
| SLB50-P15 | 5 | 660 | 1650 | 1450 | 1350 | 1100 | - | - | - | - | 30 |

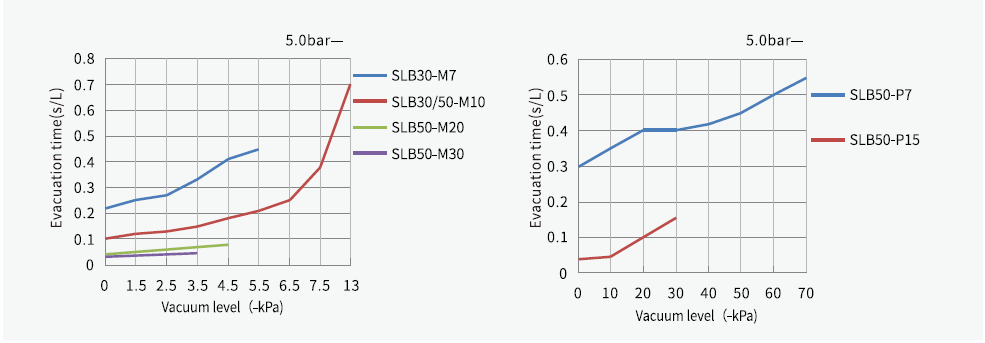

| Evacuation time(s/L) at different vacuum levels(-kPa) | ||||||||||||
| Model | Air supply pressure (bar) | Air consumption (NL/min) | 0 | 1.5 | 2.5 | 3.5 | 4.5 | 5.5 | 6.5 | 7.5 | 13 | Max. vacuum level (-kPa) |
| SLB30/50-M10 | 5 | 70 | 0.22 | 0.25 | 0.27 | 0.33 | 0.41 | 0.45 | - | - | - | 8.0 |
| SLB50-M20 | 5 | 165 | 0.1 | 0.12 | 0.13 | 0.15 | 0.18 | 0.21 | 0.25 | 0.38 | 0.7 | 13.0 |
| SLB50-M30 | 5 | 245 | 0.04 | 0.05 | 0.06 | 0.07 | 0.08 | - | - | - | - | 5.0 |
| SLB30-M7 | 5 | 375 | 0.03 | 0.035 | 0.04 | 0.045 | - | - | - | - | - | 3.5 |
| Evacuation time(s/L) to reach different vacuum levels(-kPa) | |||||||||||
| Model | Air supply pressure (bar) | Air consumption (NL/min) | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | Max. vacuum level (-kPa) |
| SLB50-P7 | 5 | 340 | 0.3 | 0.35 | 0.37 | 0.4 | 0.42 | 0.45 | 0.5 | 0.55 | 70 |
| SLB50-P15 | 5 | 660 | 0.04 | 0.045 | 0.1 | 0.055 | - | - | - | - | 30 |
